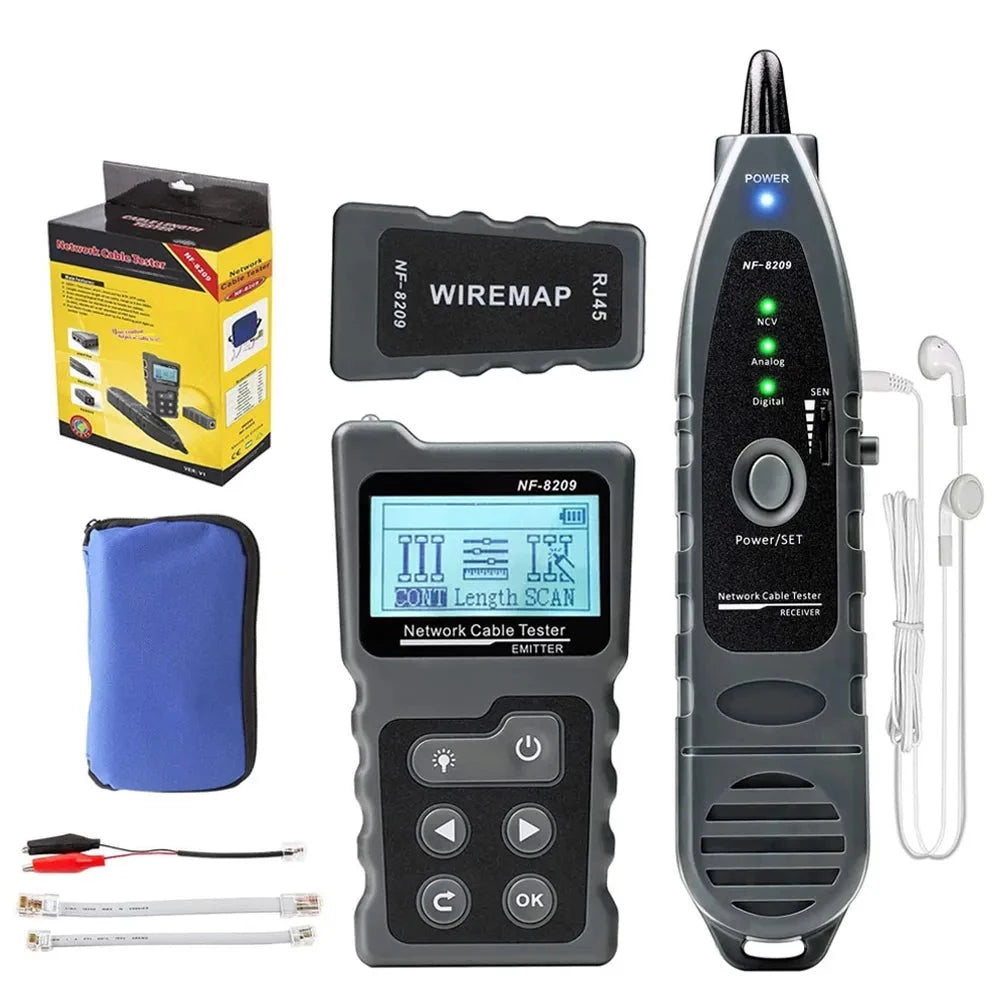

NF-8209 Cable Tracker Lan Display Measure Tester Network Tools LCD Display Measure Length Wiremap Tester with Flashlight

$132.75 $88.50

Available Options

Qty

NF-8209 Cable Tracker Lan Display Measure Tester Network Tools LCD Display Measure Length Wiremap Tester with Flashlight

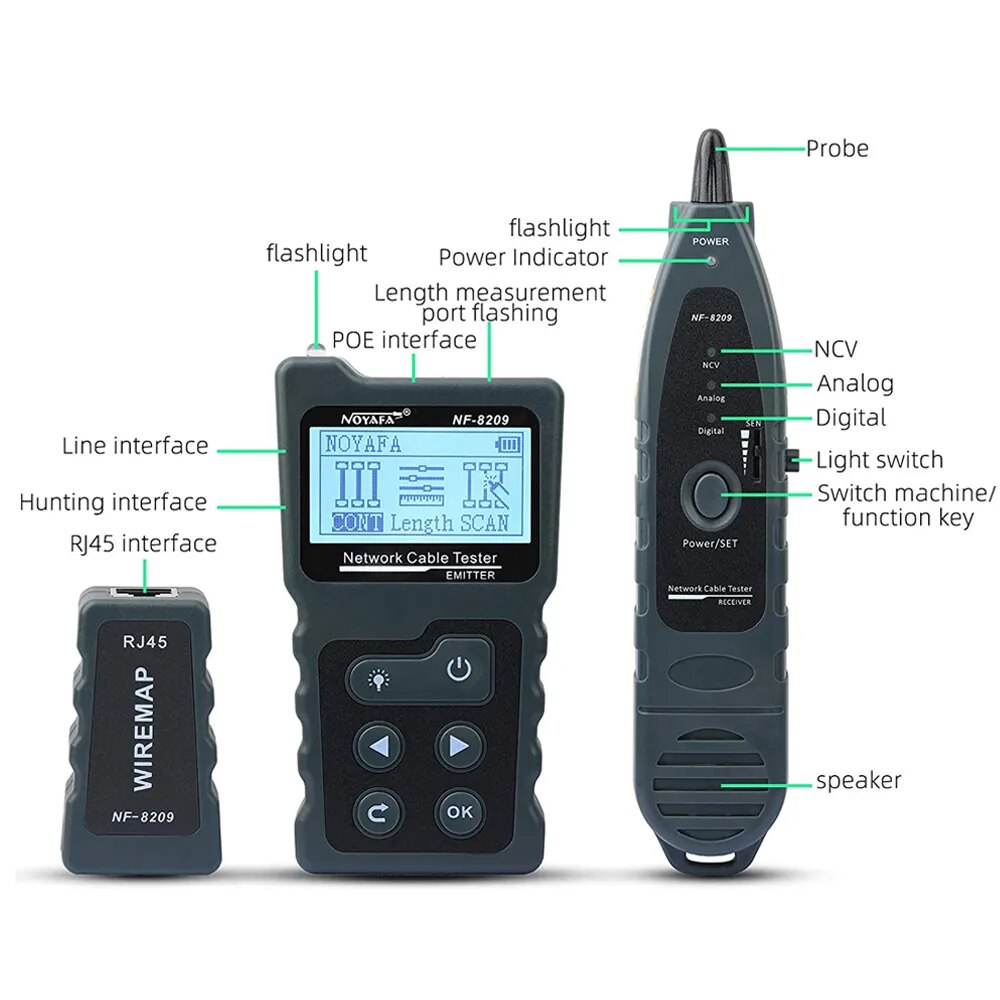

Product Description:

Product Name: Network Cable Tester

Type: NF-8209

Dimension(LxWxD): Maintester: 130x70x28mm; Receiver: 210x43x27mm

Low Voltage Prompt: 6±0.5V

Voice Prompt: Yes

Power: AAA Battery/ 9V Battery

Product Features:

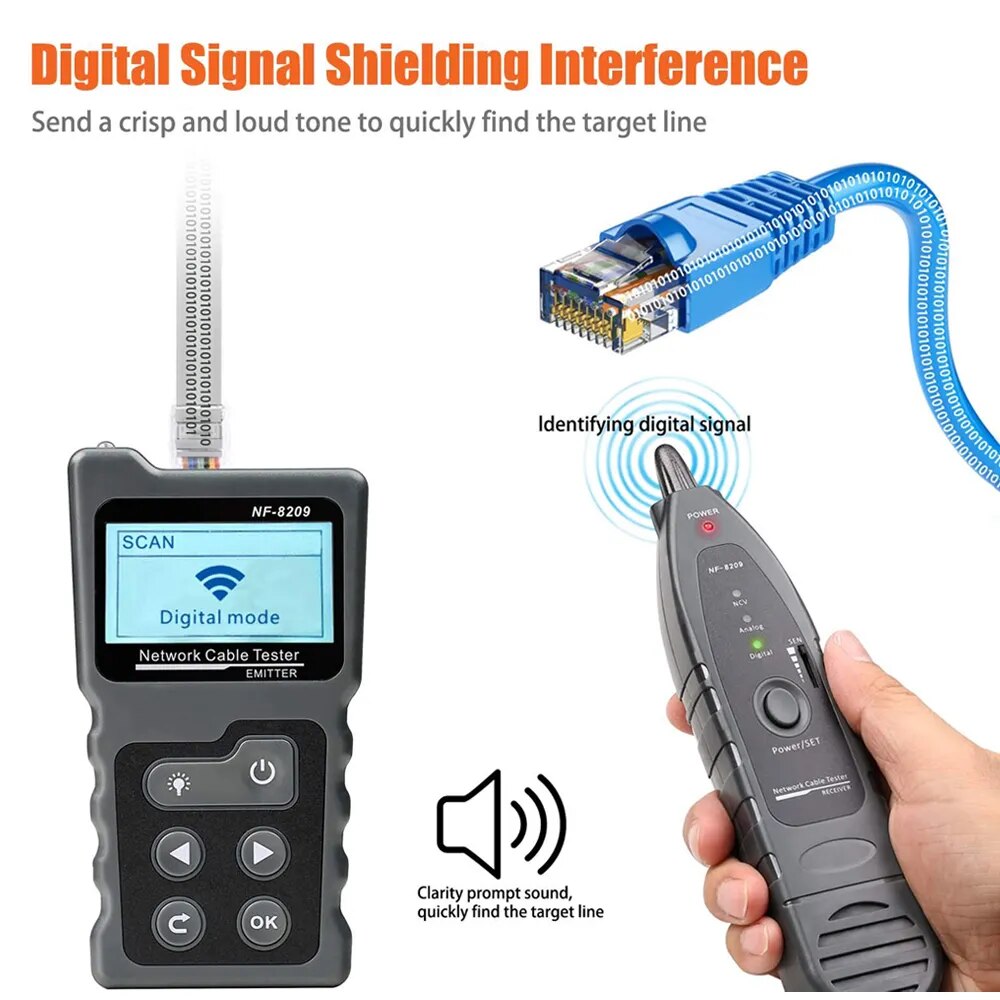

1. Three scan modes selectable: Normal Mode/ Anti-jamming Mode/ POE Mode.

3. Testing the open, short, cross,ect for the STP, UTP cable.

4. Measure cable length accurately , the range is 2.5m~200m.

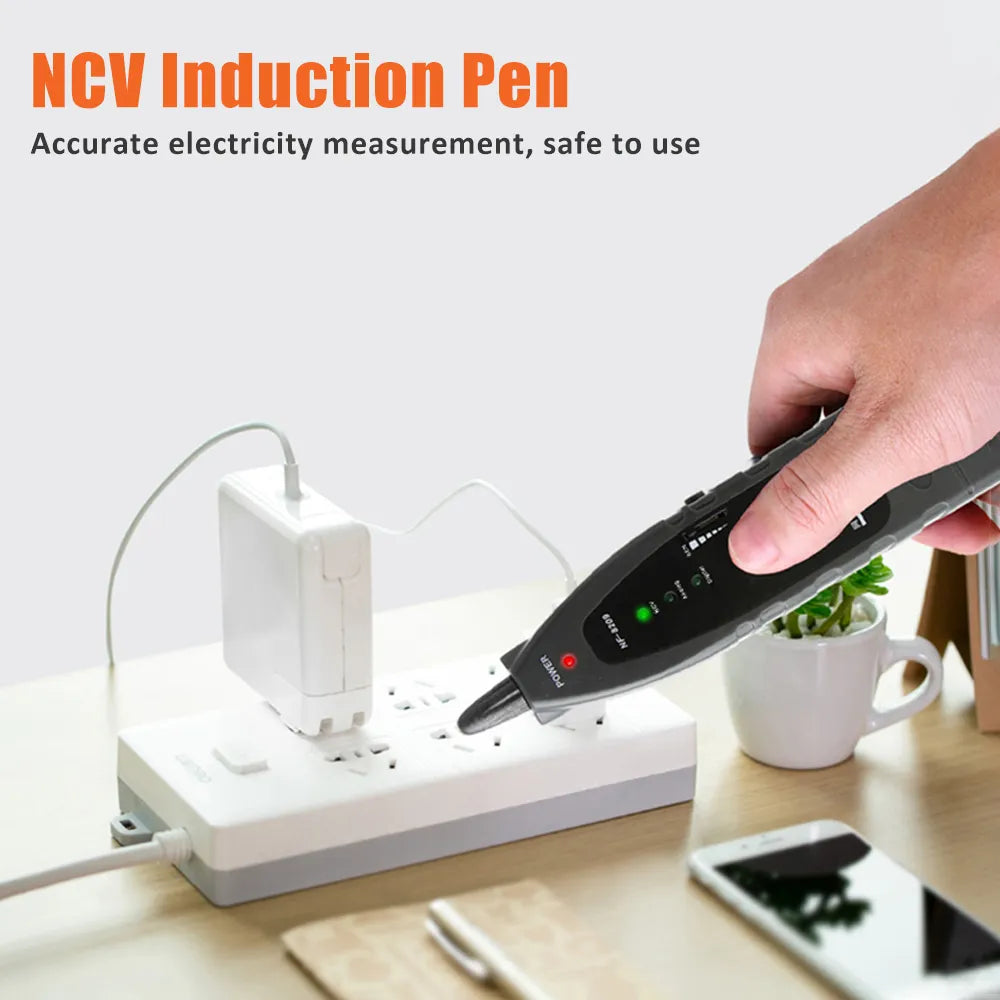

2. Detect AC voltage presence (50V-1000V).

5. Port Blink Function: For locating network port by the flashing port light on the Switch. Available to 10M/100M/1000M Hub/ switch.

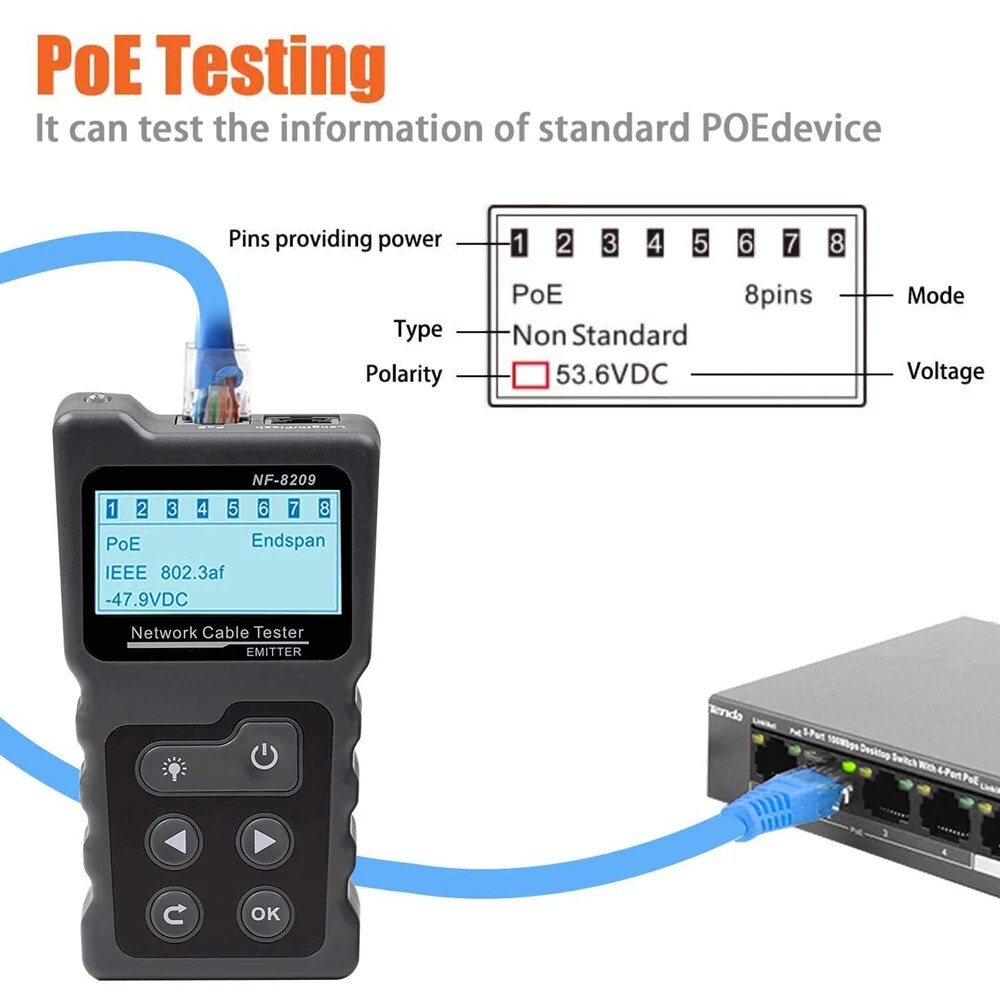

6. POE Testing : identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard).

7. Setting: Set Language, Backlight time, Auto-off time, Contrast and Version.

8. Lighting Function, convenient to work in dark environment.

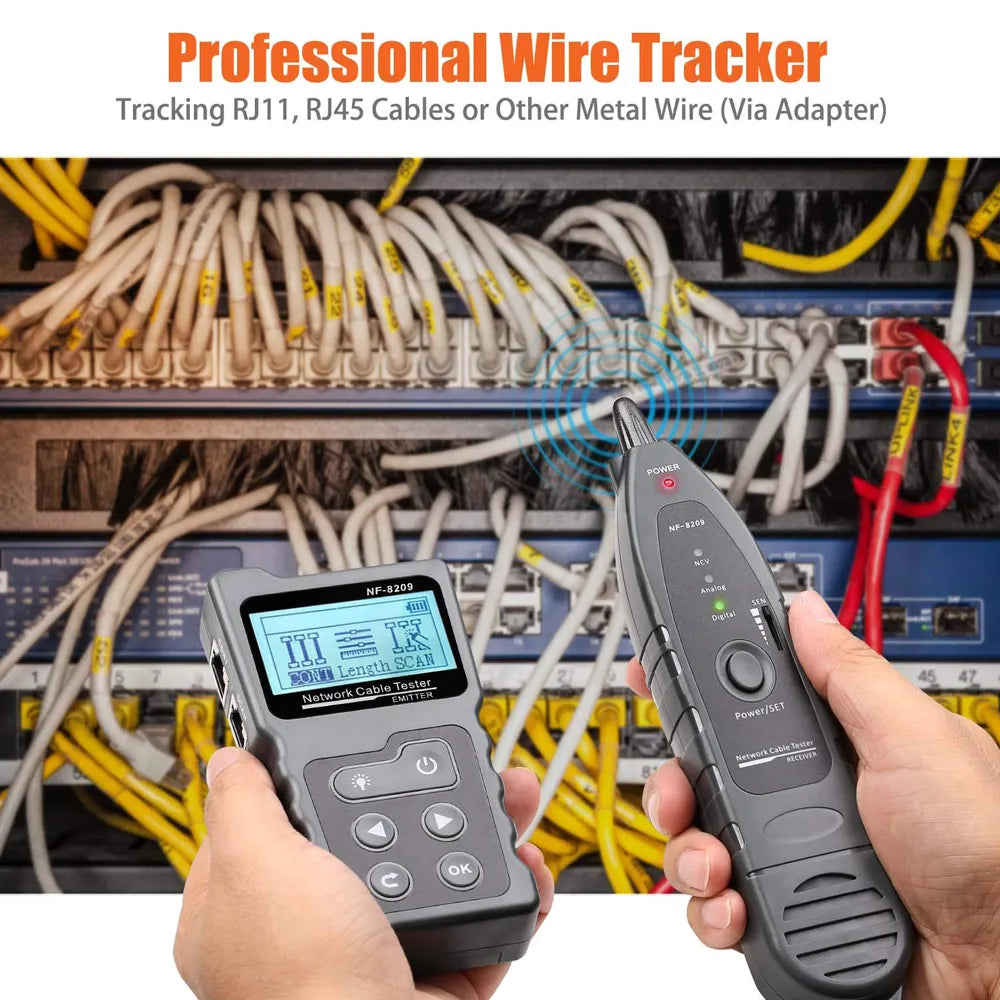

9. Headphone Function: Easy to use in noisy environments or long distance line-hunting.



Please Note:

1. Due to the light and screen difference, the item's color may be slightly different from the pictures.

2. Please allow 1-3mm differences due to manual measurement. If you have any questions, please contact us in time.
